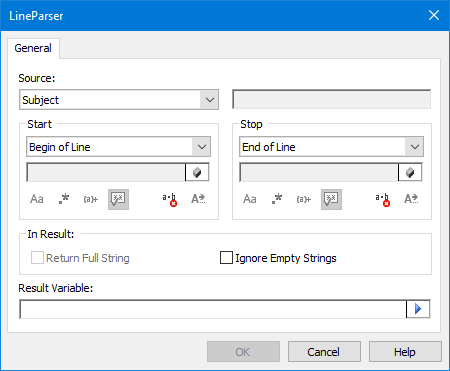

Line-by-line parsing allows to parse data from text sources using search line begin and end condition. Search runs throughout the entire text until the search line is found.

Source

Set the source text data to be parsed from.

Start After

Set condition for the beginning of the line to be parsed. The following operation modes are possible:

Begin of Line - The search string starts at begin of a line.

Defined Text - The search string starts after the specified text in a line. Template usage is possible.

Defined Text at Begin of Line - The search string starts after the specified text at begin of a line. Template usage is possible.

Match Case

Enables case-sensitive search of the string beginning.

Use Wildcards

Enables wildcards usage for search of the string beginning.

Use Regular Expressions

Enables regular expressions usage for search of the string beginning.

Include Defined Text into Result

Enables the addition of defined text to the beginning of the string parsed.

Remove Spaces

Enables space deletion at the beginning of the string parsed.

Continue Until

Set condition for end of the line to be parsed. The following operation modes are possible:

End of Line - The search string ends at the end of a line.

Defined Text - The search string ends before the specified text in a line. Template usage is possible.

Defined Text at End of Line - The search string ends before the specified text at the end of a line. Template usage is possible.

Match Case

Enables case-sensitive search of the string end.

Use Wildcards

Enables wildcard usage for search of the string end.

Use Regular Expressions

Enables regular expressions usage for search of the string end.

Include Defined Text into Result

Enables addition of defined text to the end of the string parsed.

Remove Spaces

Enables space deletion at the end of the string parsed.

In Result

Actions made with the result

Return Full String

Enables whole line extraction for the found string.

Ignore Empty Strings

Enables skipping of empty strings.

Output Variable

Set name of the variable data to be parsed in.

See also

Block Parser
