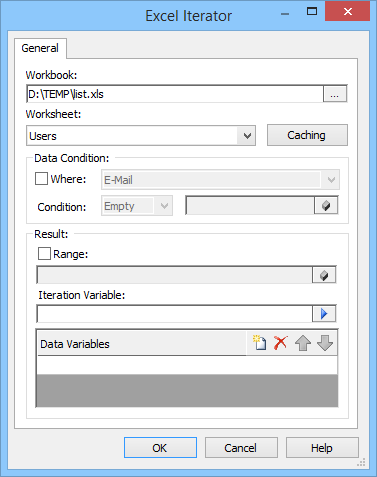

Executes a set of components for lines on the specified sheet in MS Excel document. Data from each line are transferred into the variables specified in the component by list. Variables in the list corresponds to columns on the worksheet, i.e. the first variable exchanges it's value with cells in the first column, the second - with cells in the second column etc. Iterations will be executed for all lines in the specified range until empty line being extracted.

Select WorkBook

Set Excel workbook file name.

Worksheet

Set worksheet name, which is used to exchange data.

Data Condition

Set an additional condition for a value in the specified column. Lines for which values in the specified below column do not meet the condition, will be ignored.

Where

Set a name of the column for which the condition will be used. The name of the column is taken from cells in the first line of the worksheet. I.e. name for the first column takes from cell A1, name for the second column from cell A2, etc.

Condition

Set the condition on value for the column specified in Where.

Result

Range

Set an area in the worksheet for which lines to be read/stored in. By default the whole worksheet is used.

Data variables

Set the list of variables used for data exchange with cells of extracted lines.

Iteration Variable

Set variable name iteration number to be placed in.

---

Caching Tab

The description of the Caching Tab see in the article Caching in components working with data servers.

Remarks

To use this component, you must have Microsoft Excel installed on your computer.
