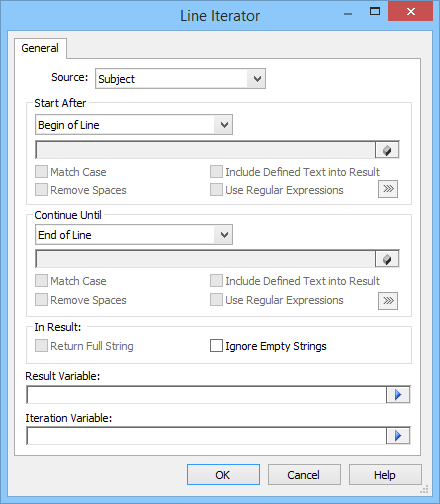

Line Iterator
Contents
Used to execute a set of components for lines in a specified text source. Only lines that meet the iterator condition will be processed. For every iteration the next appropriate line is parsed from the text source and placed to the variable. After that the set of iterator components will be executed. Iterator will finish its job, if the line meeting its condition was not found.
Source
Set the source text data to be parsed from.
Start After
Set condition for begin of the line to be parsed. The following operation modes are possible:
Begin of Line - The search string starts at begin of a line.
Defined Text - The search string starts after the specified text in a line. Template usage is possible.
Defined Text at Begin of Line - The search string starts after the specified text at begin of a line. Template usage is possible.
Match Case
Enables case-sensitive search of the string beginning.
Use Regular Expressions
Enables regular expressions usage for search of the string beginning.
Include Defined Text into Result
Enables addition of defined text to the beginning of the string parsed.
Remove Spaces
Enables space deletion at the beginning of the string parsed.
Continue Until
Set condition for end of the line to be parsed. The following operation modes are possible:
End of Line - The search string ends at the end of a line.
Defined Text - The search string ends before the specified text in a line. Template usage is possible.
Defined Text at End of Line - The search string ends before the specified text at the end of a line. Template usage is possible.
Match Case
Enables case-sensitive search of the string end.
Use Regular Expressions
Enables regular expressions usage for search of the string end.
Include Defined Text into Result
Enables addition of defined text to the end of the string parsed.
Remove Spaces
Enables space deletion at the end of the string parsed.
In Result
Return Full String
Enables whole line extraction for the found string.
Ignore Empty Strings
Enables skipping of empty strings.
Result Variable
Set name of the variable data to be parsed in.
Iteration Variable
Set variable name iteration number to be placed in.
