Block Iterator
Contents

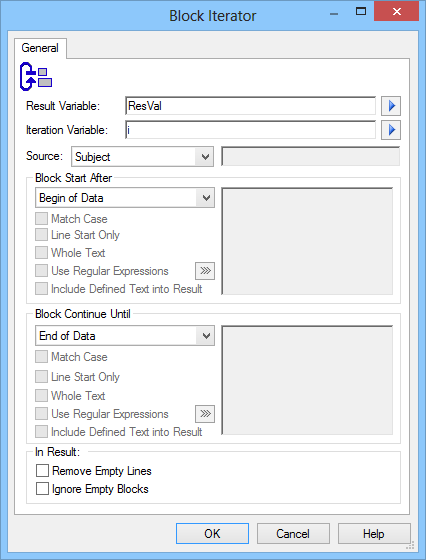

Used to execute a set of components for blocks at the specified text. Only blocks met the iterator condition will be processed. For every iteration the next appropriate block is parsed from the text source and placed to the variable. After that the set of iterator components will be executed. Iterator will finish its job, if the block met its condition was not found.
Result Variable
Set name of the variable block to be parsed in for every iteration.
Iteration Variable
Set variable name, which is used to place iteration number.
Source
Set text source blocks to be parsed from.
Block Start After
Set condition for beginning of the block to be parsed for every iteration. The following operation modes are possible:
Begin of Data
The block starts at the beginning of the data source.
Defined Text
The block starts after the specified text.
Match Case
Enables case-sensitive search for the block beginning.
Line Start Only
Enables checking that the block beginning found is in beginning of a line
Whole Text
Enables comparing mode in which defined text must completely coincide with the beginning of the block.
Use Regular Expressions
Enables search for the block beginning using regular expressions.
Include Defined Text into Result
Enables adding defined text to the beginning of the block parsed.
Block Continue Until
Set block end condition. The following operation modes are possible:
End of Data
The block ends at the end of a text source.
Defined Text
The block ends before the text specified.
Defined Text or End of Source
The block ends before the text specified. If this text not found the blocks ends at the end of source.
Match Case
Enables case-sensitive search for the block end.
Line Start Only
Enables checking that the block beginning found is in beginning of a line.
Whole Text
Enables comparing mode in which defined text must completely coincide with the end of the block.
Use Regular Expressions
Enables search for the block end using regular expressions.
Include Defined Text into Result
Enables adding defined text to the end of the block parsed.
Remove Empty Lines
Enables empty lines deleting in the data parsed.
Ignore Empty Blocks
Enables skipping of empty blocks.
